PID: MIKROE-5583

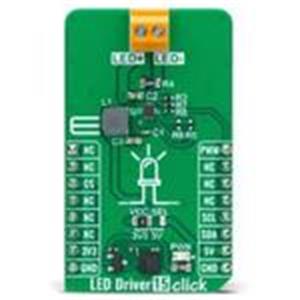

LED Driver 15 Click is a compact add-on board that simplifies the control of multiple LEDs.

This board features the MP3309C, a fully integrated synchronous boost white LED driver with

an I2C interface from Monolithic Power Systems. The MP3309C offers high efficiency, delivers

up to 40mA of LED current, and operates from a voltage of mikroBUS™ power rails, supporting

up to 8 white LEDs in series. It also features a programmable switching frequency to optimize

efficiency, supports analog and PWM dimming, and has multiple built-in protection functions

that protect the circuit during abnormalities. This Click board™ is suitable for backlight

applications for various amusement products, LED status signalization, home automation

projects, and other applications that need illumination with white light to conduct tasks like

detection, recognition, and handling.

LED Driver 15 Click is supported by a mikroSDK compliant library, which includes functions that

simplify software development. This Click board™ comes as a fully tested product, ready to be

used on a system equipped with the mikroBUS™ socket.
